Vertical lining clip for laying mono, multi-size ceramic slabs and planks
Vertical lining clip for laying mono, multi-size ceramic slabs and planks

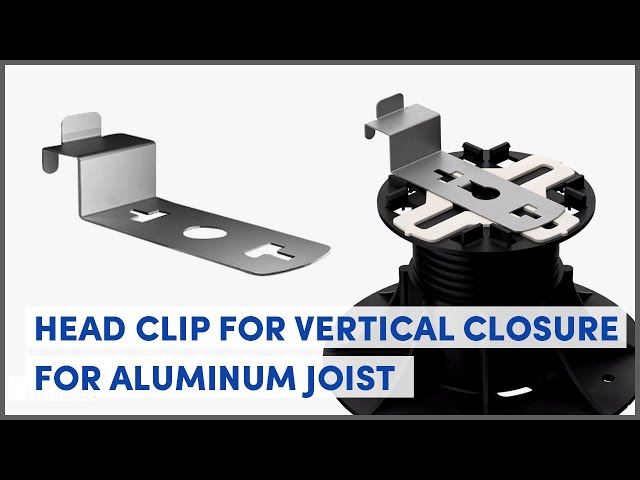

Finally the solution for the vertical closure with head clip also for the aluminium joist!
This solution consists of two particular stainless steel clips properly shaped as to perfectly fit with the aluminium joist and under the base of the Eterno Ivica support.
One is the standard base clip while the other one is the newest innovation to complete the vertical closure.
This creates the coupling to which the suitably sized infill board will be fixed. It is available for 20, 30 and 40 mm thick plates.
* The 150 mm version is ONLY compatible with SRT supports.
Variantes
| Código de variante | Tipo | Medida | Pz (Por Caja) |
|---|---|---|---|
| P021000722 | Head clip for vertical closure for alluminium joist | d. 110/150 - 20 mm | 100 |
| P021000723 | Head clip for vertical closure for alluminium joist | d. 110/150 - 30 mm | 100 |
| P021000724 | Head clip for vertical closure for alluminium joist | d. 110/150 -40 mm | 100 |
