SE Supporto Eterno
He was the first.
It is still unique.
The Eterno SE adjustable support with self-levelling head was the first of a long series of supports for raised floors from the outside. Its value: combining technicality, aesthetics and practicality of laying outdoor floors. It has established itself as the only solution in the world capable of counteracting the slope of the laying surfaces. A result that is achieved thanks to the tilting movement of the head, which compensates for slopes of up to 5%.

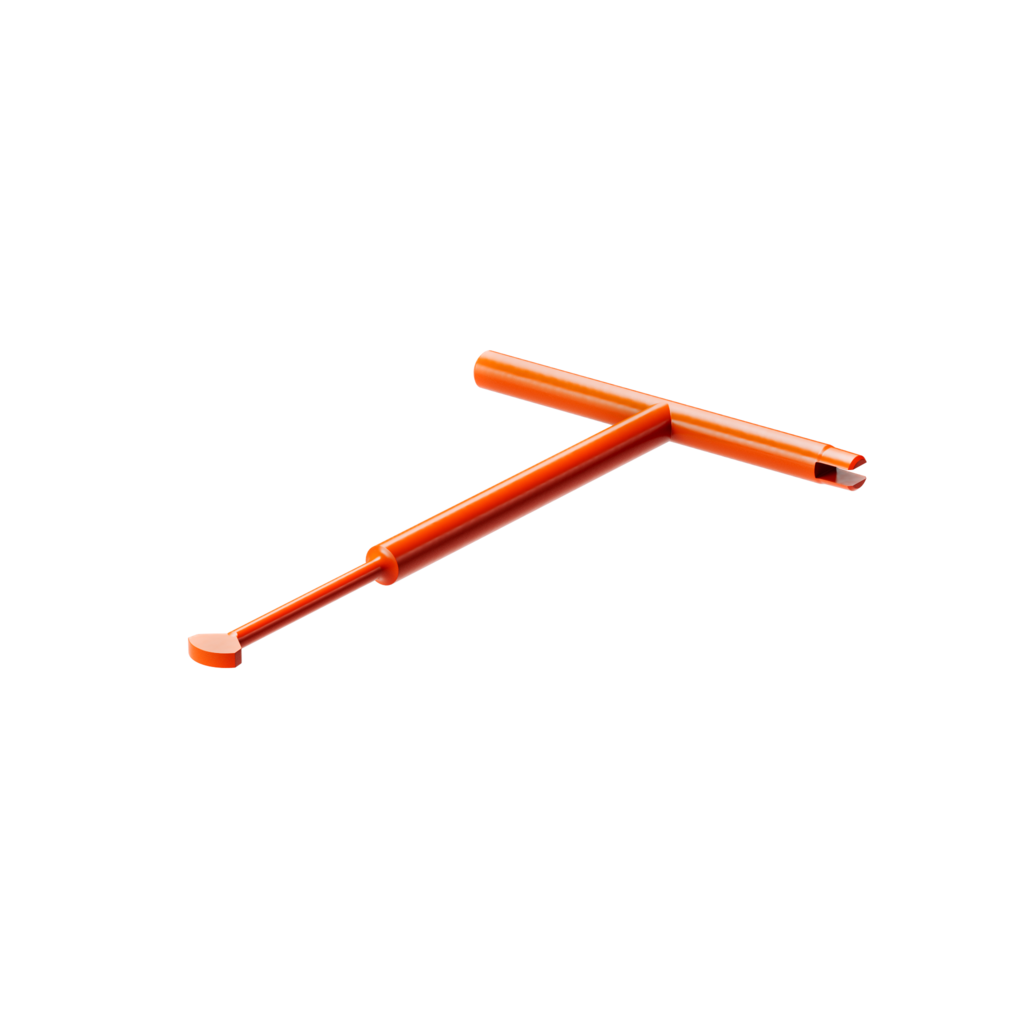

The adjustment takes place with a key that acts from above, even with the floor mounted, and guarantees a millimetric registration of the entire floor.
Its many other advantages are experienced by designers, builders and installers who use this unsurpassed system every day in the world.

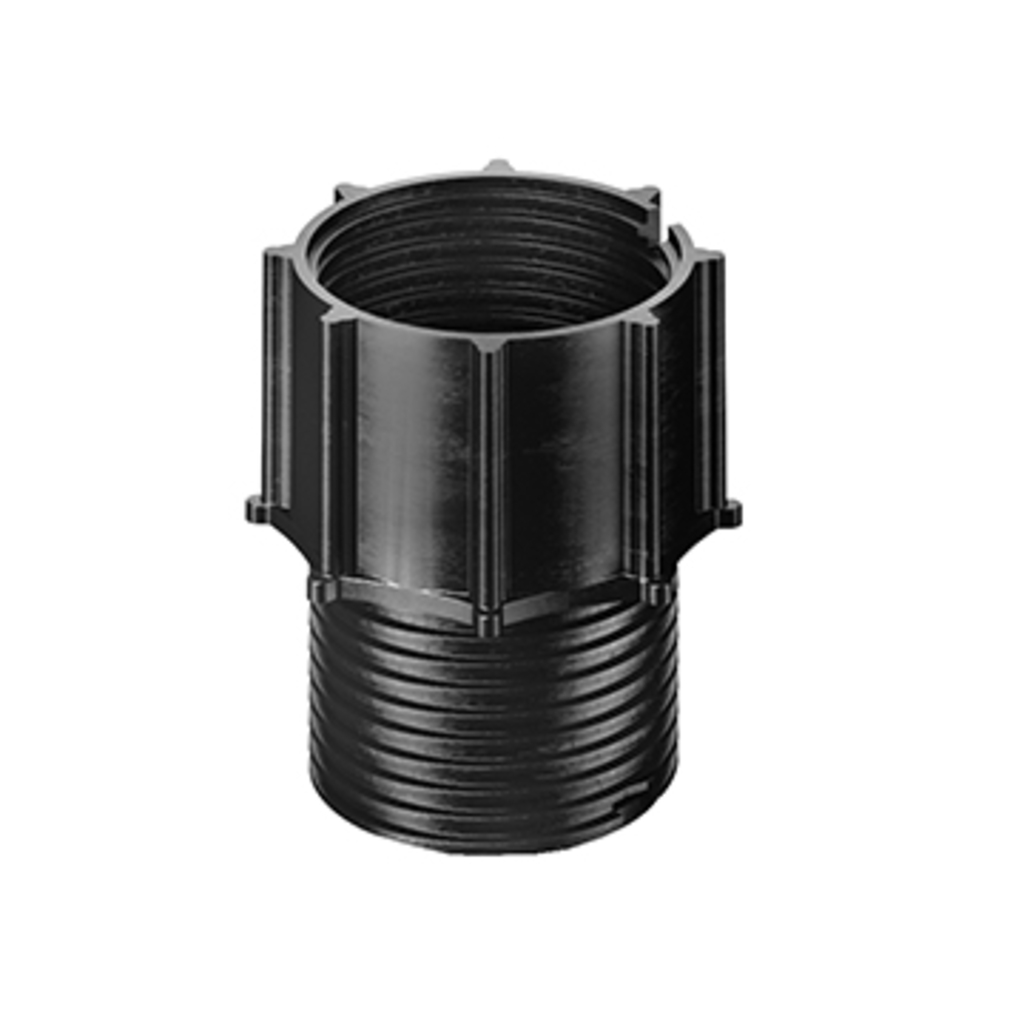

Extension for large heights
When the project requires going beyond 420 mm, Eterno Ivica has thought of a solution that maintains stability, safety and ease of installation: the Extension for large heights for Pedestal SE.

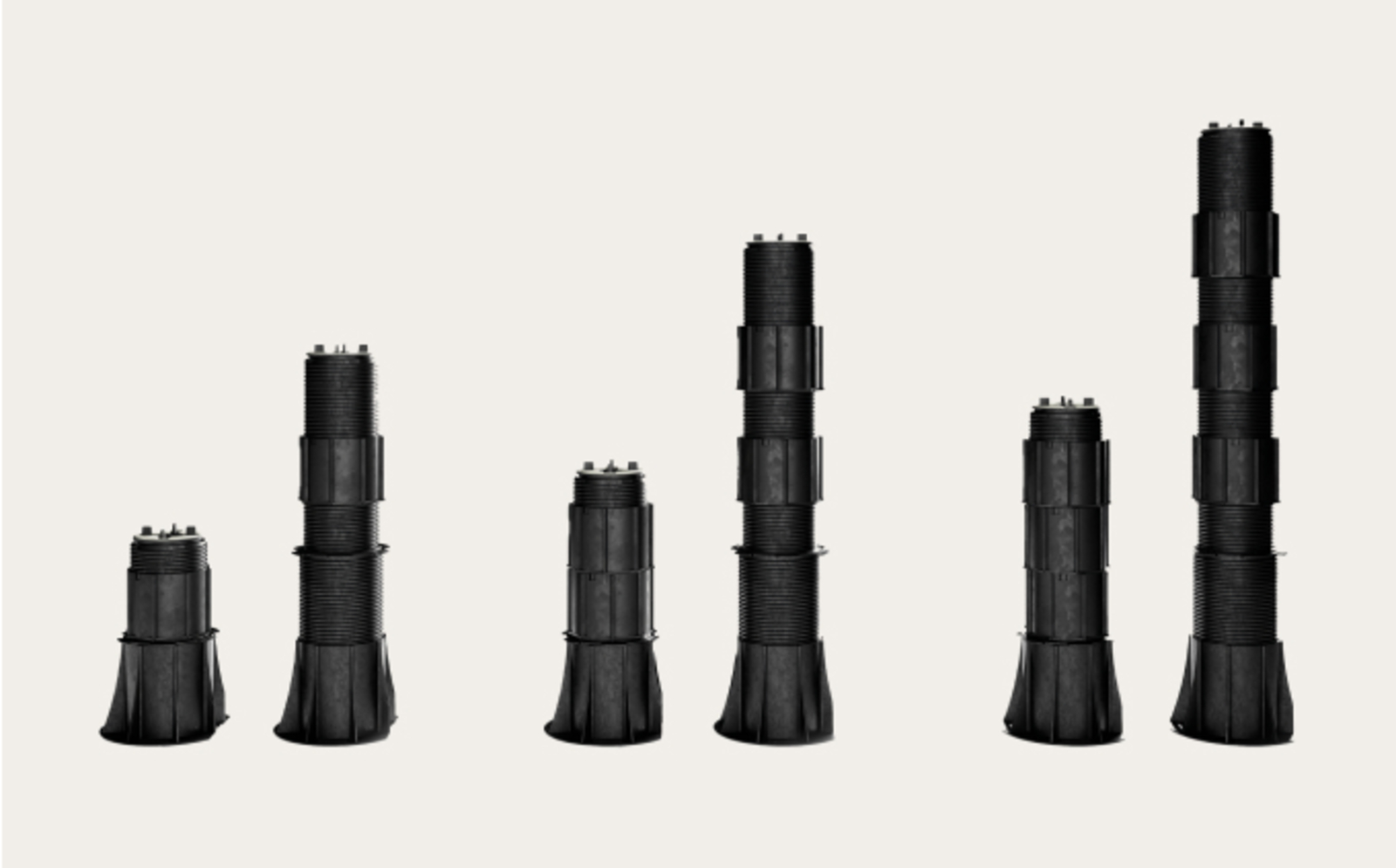

It is an element that fits quickly and precisely between the integrated extension and the screw, perfectly adaptable to the PR3 support. Depending on your needs, you can use one, two or three extensions and easily reach important heights: 595 mm, 770 mm and 945 mm.
And, even when climbing, the confidence remains the same: the extension is equipped with both a lower and upper safety lock, with all the solidity and the Pedestal by Eterno Ivica guarantee.
Excellent hiding place for pipes and systems
The gap between the raised flooring and the membrane below creates a clean and orderly technical space, ideal for the passage of pipes, cables and systems. In this way, everything you need is hidden from view, protected and easily managed, without compromising the aesthetics of the finished surface.
In addition, the inspectable space allows you to intervene quickly for maintenance or modifications: just remove a part of the flooring, without demolition and without invasive work.
The head tilts and compensates for slopes, adapting to the laying surface.

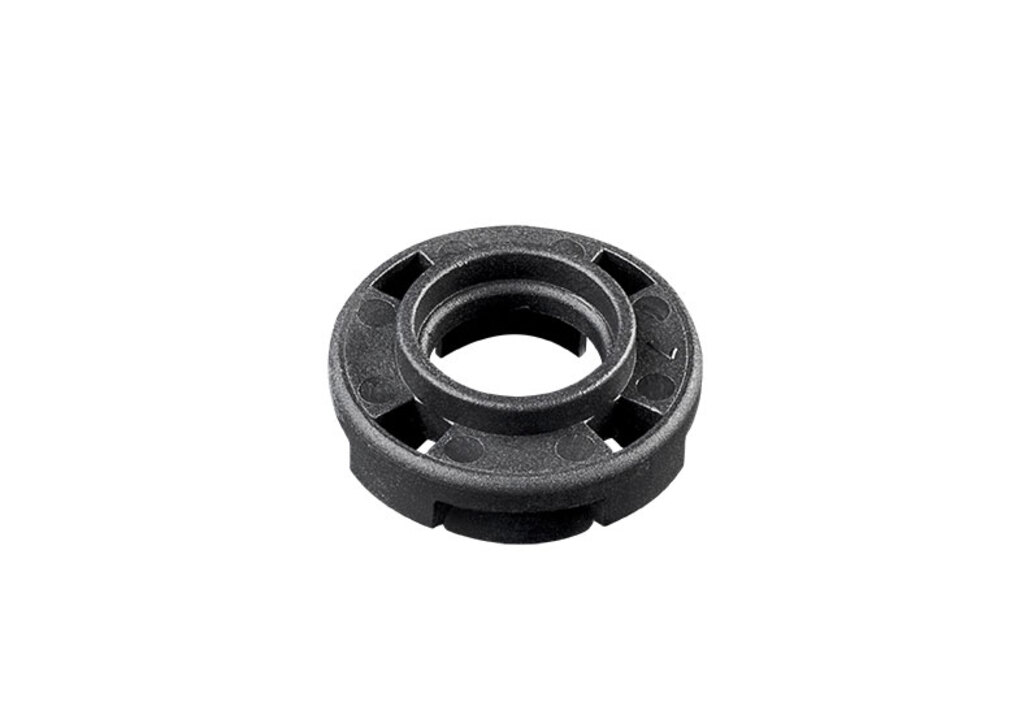

Insert the stopper in the center: the head is blocked and the self-levelling movement stops.
The head remains stable and immobile, like a fixed head, for linear laying and maximum rigidity.

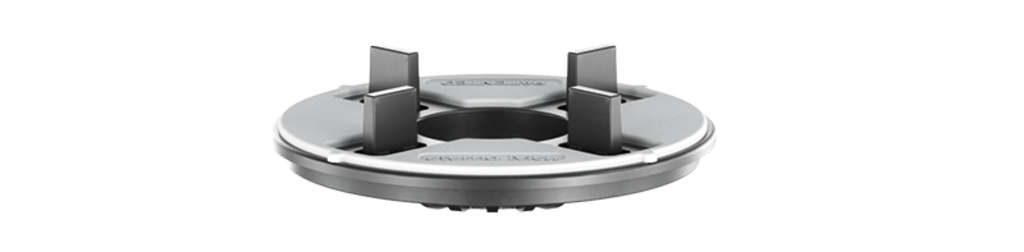

A solid base, but easy to break.
The fins of the Pedestal supports are designed to be removable with extreme ease, allowing greater adaptability and customisation during installation. This feature allows you to quickly change the configuration of the media without the need for special tools, saving time and effort. The new break-facilitated base represents a significant innovation in the sector: it guarantees a simple and fast installation, eliminating the need to use cutting tools.
Guarda il videoOne support, more installation systems

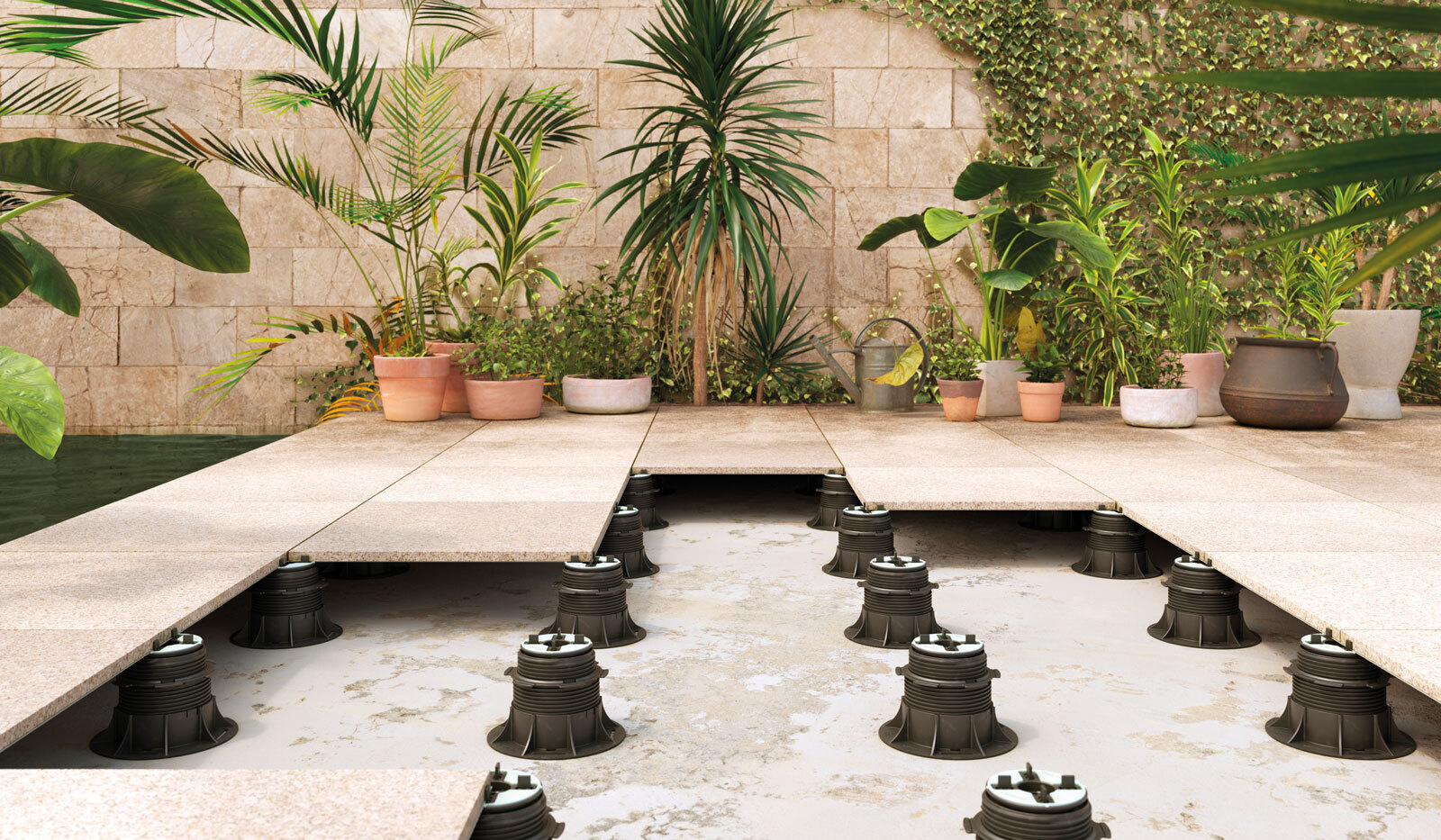

The Pedestal SE adapts naturally to different outdoor flooring solutions: from laying plates to decking on wooden or aluminium joists, up to laying on a grid. A single adjustable base for different configurations, always with stability and elevation accuracy.
Variantes
| Código de variante | Descrizione | Medida | Pz (por palé) | Pz (Por Caja) |
|---|---|---|---|---|
| E240028038 | SE 0 con testa autolivellante Ø 110 mm, aletta 4 mm H 12 mm | 28-38 mm | 1500 | 25 |
| E240037050 | SE 1 con testa autolivellante Ø 110 mm, aletta 4 mm H 12 mm | 37,5-50 mm | 1200 | 25 |
| E240050075 | SE 2 con testa autolivellante Ø 110 mm, aletta 4 mm H 12 mm | 50-75 mm | 1200 | 25 |
| E240075120 | SE 3 con testa autolivellante Ø 110 mm, aletta 4 mm H 12 mm | 75-120 mm | 800 | 25 |
| E240120170 | SE 4 con testa autolivellante Ø 110 mm, aletta 4 mm H 12 mm | 120-170 mm | 600 | 25 |
| E240170215 | SE 5 con testa autolivellante Ø 110 mm, aletta 4 mm H 12 mm | 170-215 mm | 600 | 25 |
| E240140230 | SE 6 con testa autolivellante Ø 110 mm, aletta 4 mm H 12 mm | 140-230 mm | - | - |
| E240185275 | SE 7 con testa autolivellante Ø 110 mm, aletta 4 mm H 12 mm | 185-275 mm | - | - |
| E240235325 | SE 8 con testa autolivellante Ø 110 mm, aletta 4 mm H 12 mm | 235-325 mm | - | - |
| E240205345 | SE 9 con testa autolivellante Ø 110 mm, aletta 4 mm H 12 mm | 205-345 mm | - | - |
| E240250385 | SE 10 con testa autolivellante Ø 110 mm, aletta 4 mm H 12 mm | 250-385 mm | - | - |
| E240300400 | SE 11 con testa autolivellante Ø 110 mm, aletta 4 mm H 12 mm | 300-400 mm | - | - |
| E240270455 | SE 12 con testa autolivellante Ø 110 mm, aletta 4 mm H 12 mm | 270-455 mm | - | - |
| E240315500 | SE 13 con testa autolivellante Ø 110 mm, aletta 4 mm H 12 mm | 315-500 mm | - | - |
| E240365550 | SE 14 con testa autolivellante Ø 110 mm, aletta 4 mm H 12 mm | 365-550 mm | - | - |
